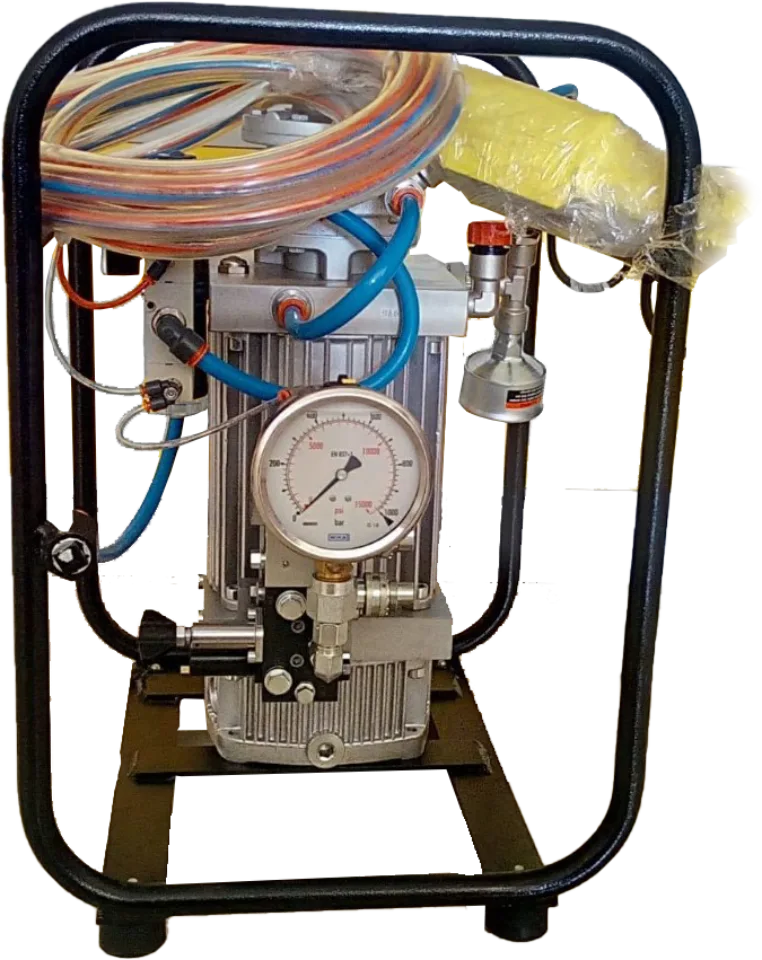

FEATURES
- High Flow 3-Stage pump unit
- Compact and Light weight
- The single valve block can be replaced by component 4/8 way manifold block thereby allowing 2 or 4 tools to be driven simultaneously.
- Supporting continuous operation with steel frame.
- 100mm diameter gauge, aluminum oil tank with oil level indicator.
- Variable pressure adjustment between 1000~10000 psi
- Designed for continuous operation.
- Supplied with 5 mtr twin hoses and quick connect couplings suitable for TXD, TPXD, TSD and TPSD series torque wrenches.
| Model No. | THPA-2 | THPA-4 |
|---|---|---|
| Working Pressure | 70 Mpa | 70 Mpa |
| Return Line Pressure | 10 Mpa | 10 Mpa |
| No Load Pressure | 7 Mpa | 7 Mpa |
| Air Free Flow (cfm) | 128-150 cfm | 128-150 cfm |
| Pneumatic Motor | 3 KW / RPM ~3000 | 3 KW / RPM ~3000 |
| Tank Capacity | 5 L | 5 L |
| Flow Rate | 0.98 - 8 L/min | 0.98 - 8 L/min |
| Oil Cooler | Yes | Yes |
| Weight | 30 Kg | 30 Kg |
| Port Sizes | 2 x 1/4" BSP | 4 x 1/4" BSP |
| Air in | 4 ~ 8 bar | 4 ~ 8 bar |
| L x W x H (mm) | 442 x 282 x 377 | 460 x 282 x 377 |

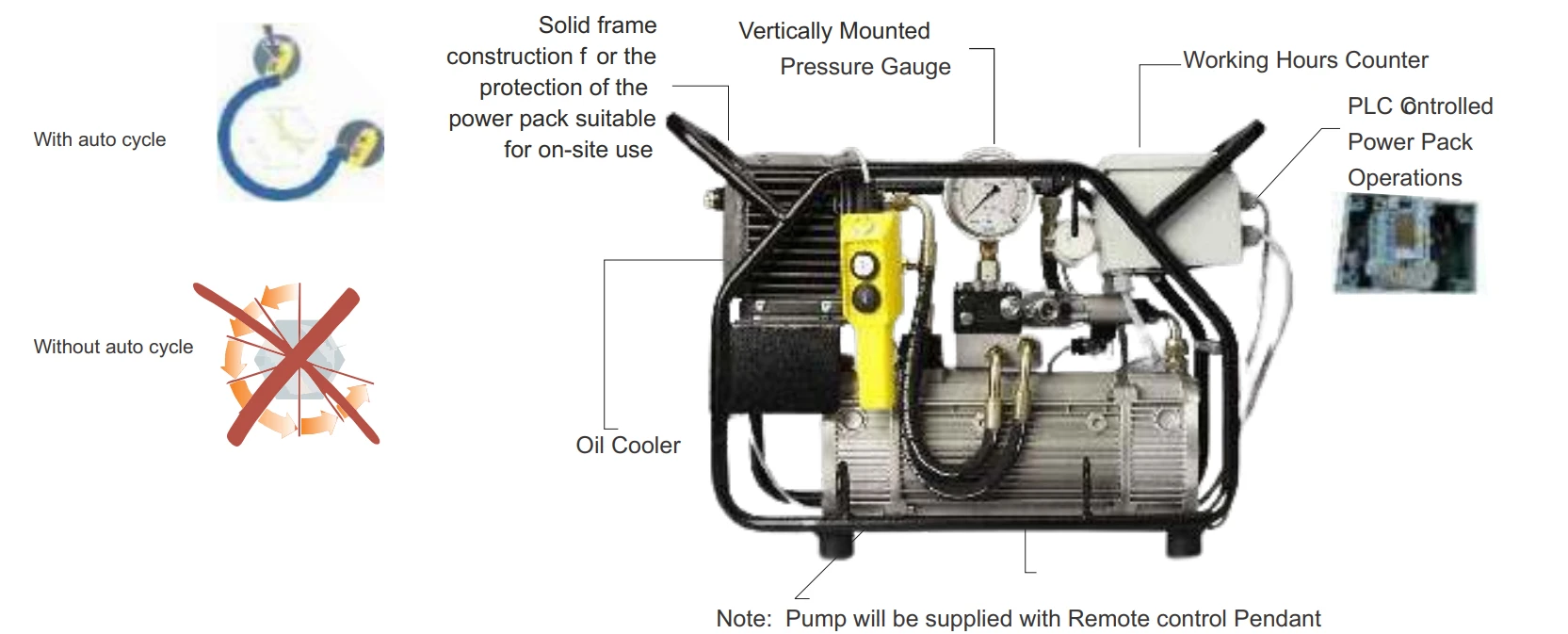

FEATURES
- Faster, high repeatability and reliable in operations for bolting process.
- In-built heat exchanger cools the system. Power pack switches of automatically if temperature rises above 800 C.
- Noiseless and vibration free operations.
- Effectively controlled operations operate continuously more than 3 minutes idle, it gets switched to automatically.
| MODEL NO. | THPE-1000 | THPE-4000 |
|---|---|---|
| Working | 70 MPa | 70 MPa |
| Drive | Electric | Electric |
| Voltage | 220V/50Hz | 220V/50Hz |
| Power | 1KW | 1KW |
| Tank Capacity | 6L | 8L |
| Flow Rate | 9.7LPM@100Bar 0.97LPM@700Bar |
9.7LPM@100Bar 0.97LPM@700Bar |
| Oil Cooler | Yes | Yes |
| Weight | 29kg | 31kg |
| Oil Outputs | 2x1/4"NPT | 4x1/4"NPT |
| LxWxH(mm) | 525x245x476 | 525x245x476 |
