FEATURES
The Machine has automatic fee mechanism which is easy to operate, it also adjust the cutting quantity and beveling angle can be adjusted from 0 degree to 54 degree. Pipe wall thickness from 15 mm to 75 mm the machine can be used easily & used as a flange facing tools.
DRIVING TYPE
Electric Model: It is Electrically driven with high performance motor to drive, 220v, 1 phase, Voltage, 50 - 60 Hz frequency, 1.5 HP - 3.0 HP Power.
Pneumatic Model: A Pneumatic motor adopts to drive 10-25 bar is Air working pressure, 1000 - 2000 L/min is Air consuming flux. Mostly used at dangerous operation places & for inflammable.

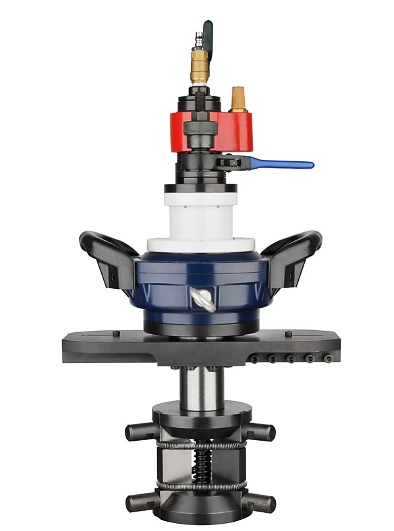

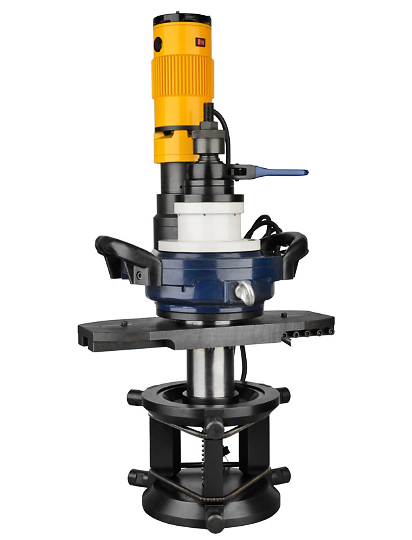

Electric Driven ID-Beveling Machine
Pneumatic Driven ID-Beveling Machine
| Model | Working Range (LD-OD) | Wall Thickness | Rotation Speed | |
|---|---|---|---|---|
| TISE/P-30 | Ø18-30 | 1/2”–3/4” | ≤15 | 50r/min |
| TISE/P-80 | Ø28-89 | 1”–3” | ≤15 | 55r/min |
| TISE/P-120 | Ø40-120 | 11/4”–4” | ≤15 | 30r/min |
| TISE/P-159 | Ø65-159 | 21/2”–5” | ≤20 | 35r/min |
| TISE/P-252-2 | Ø80-273 | 3”–10” | ≤75 | 50r/min |
| TISE/P-352-2 | Ø150-356 | 6”–14” | ≤75 | 14r/min |
| TISE/P-426-2 | Ø273-426 | 10”–16” | ≤75 | 12r/min |
| TISE/P-630-2 | Ø300-630 | 12”–24” | ≤75 | 10r/min |
| TISE/P-850-2 | Ø490-850 | 24”–34” | ≤75 | 9r/min |

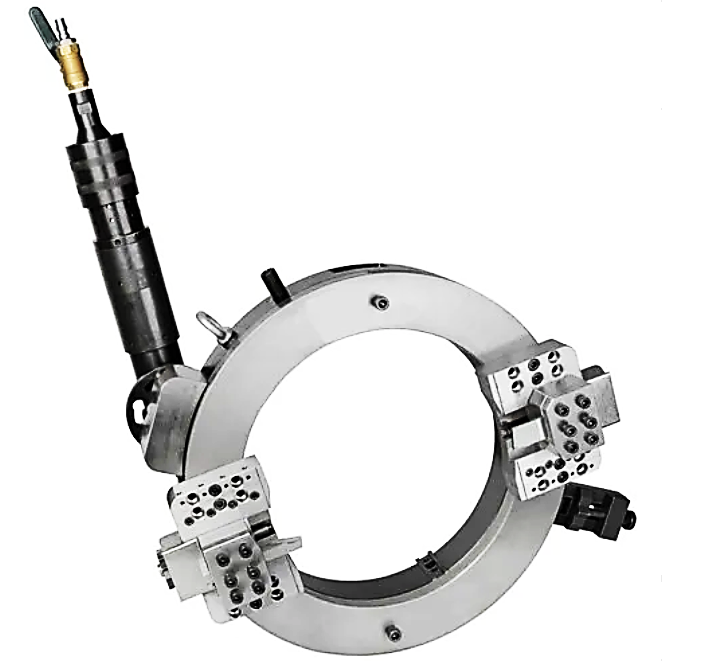

Pneumatic Driven Clamshell
Pneumatic type operation :
0.8 - 1.0 Mpa @ 1000 - 2000 L/min
Pneumatic type operation :0.8 - 1.0 Mpa @ 1000 - 2000 L/min

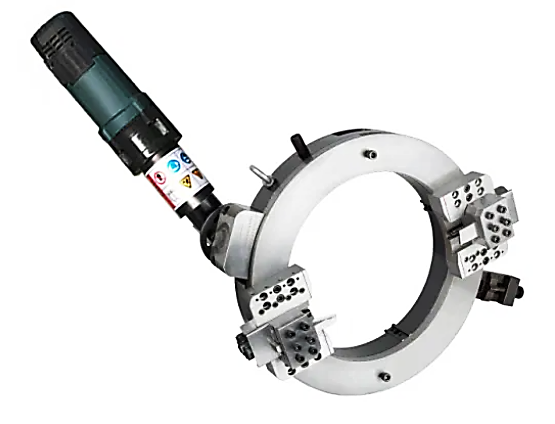

Electric Driven Clamshell
Electrical type operation :
I PH, 220 V, 50 Hz, 12 A, 1.5 - 2 KW
Electrical type operation :I PH, 220 V, 50 Hz, 12 A, 1.5 - 2 KW

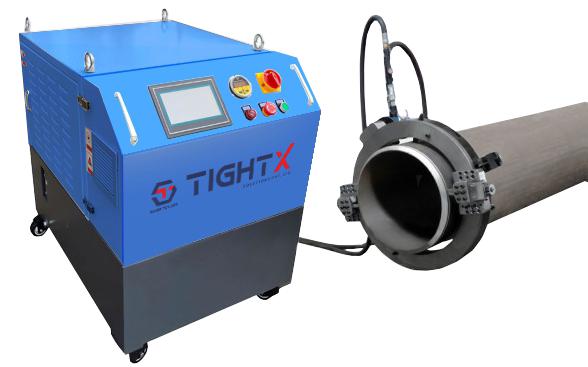

Hydraulic Driven Clamshell
Hydraulic type operation :
(5.5 - 11 Kw) 380 V 3 PH 50 - 60 HZ
10 Mpa @ 25 L/min
Hydraulic type operation :(5.5 - 11 Kw) 380 V 3 PH 50 - 60 HZ
10 Mpa @ 25 L/min
FEATURES
- Easy to operate, Minimal radial space, High efficiency & lighter weight, Automatic feed mechanism.
| Model | MM | OD Inch | Standard | Heavy-duty | Rotation Speed |
|---|---|---|---|---|---|
| TCBM-168E/P | 50-168 | 2”-6” | <30 | <50 | 20 |
| TCBM-230E/P | 80-230 | 3”-8” | <30 | <50 | 15 |
| TCBM-275E/P | 125-275 | 5”-10” | <30 | <70 | 15 |
| TCBM-325E/P | 168-325 | 6”-12” | <30 | <110 | 13 |
| TCBM-377E/P | 219-377 | 8”-14” | <30 | <110 | 13 |
| TCBM-426E/P | 273-426 | 18”-16” | <30 | <110 | 12 |
| TCBM-457E/P/H | 300-457 | 12”18” | <30 | <110 | 12 |
| TCBM-508E/P/H | 355-508 | 14”-20” | <30 | <110 | 11 |
| TCBM-560E/P/H | 400-560 | 16”-22” | <30 | <110 | 11 |
| TCBM-610E/P/H | 457-610 | 18”-24” | <30 | <110 | 11 |
| TCBM-660E/P/H | 508-660 | 20”-26” | <30 | <110 | 11 |
| TCBM-715E/P/H | 560-715 | 22”-28” | <30 | <110 | 10 |
| TCBM-762E/P/H | 610-762 | 24”-30” | <30 | <110 | 10 |
| TCBM-830/P/H | 660-830 | 26”-32” | <30 | <110 | 10 |
| TCBM-914/P/H | 762-914 | 30”-42” | <30 | <110 | 10 |
| TCBM-1066P/H | 914-1066 | 36”-42” | <30 | <110 | 9 |
| TCBM-1230P/H | 1066-1230 | 42”-48” | <30 | <110 | 9 |
| TCBM-1422P/H | 1219-1422 | 48”-56” | <30 | <110 | 8 |
| TCBM-1630P/H | 1422-1630 | 56”-64” | <30 | <110 | 7 |
| TCBM-1830H | 1630-1830 | 64”-72” | <30 | <110 | 6 |
| Model Size | d (mm) | D (mm) | L (mm) |
|---|---|---|---|
| TCBM-168E/P | 185 | 512 | 192 |
| TCBM-230E/P | 236 | 564 | 192 |
| TCBM-275E/P | 283 | 612 | 192 |
| TCBM-325E/P | 334 | 665 | 192 |
| TCBM-377E/P | 386 | 719 | 192 |
| TCBM-426E/P | 438 | 776 | 195 |
| TCBM-457E/P/H | 469 | 807 | 195 |
| TCBM-508E/P/H | 519 | 862 | 195 |
| TCBM-560E/P/H | 570 | 910 | 195 |
| TCBM-610E/P/H | 618 | 960 | 195 |
| TCBM-660E/P/H | 670 | 1020 | 195 |
| TCBM-715E/P/H | 719 | 1084 | 198 |
| TCBM-762E/P/H | 770 | 1134 | 198 |
| TCBM-830/P/H | 830 | 1194 | 207 |
| TCBM-914/P/H | 924 | 1296 | 214 |
| TCBM-1066P/H | 1077 | 1468 | 216 |
| TCBM-1230P/H | 1248 | 1646 | 216 |
| Description | Part Number | Application | Sketch |
|---|---|---|---|

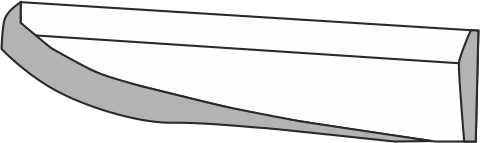

| Beveling tool Material: AISI M42 Width: 12mm Thk: 20mm Length: 105mm |
TBT-LH1220-300 TBT-LH1220-37.5 TBT-RH1220-a |
Left Hand Standard beveling tool for most materials, up to 30mm. |  |

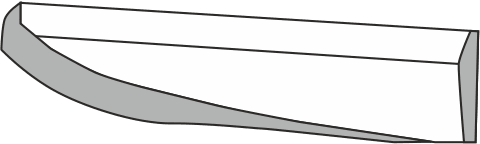

| Beveling Material: AISI M42 Width: 12mm Thk: 20mm Length: 150mm |
TBT-CB1220-10°x30° TBT-CB1220-10°x37.5° |
Right hand 10 x 30, For most material up to 30mm. Right hand 10 x 37.5 as per ASME B 16.5, For most material, up to 30mm. |
 |
| Compound Beveling Material: AISI M42 Width: 25mm Thk: 20mm Length: 150mm |
TBT-CB2525-10°x30° TBT-CB2525-10°x37.5° |
Right hand 10 x 30, For most Material up to 60mm, Fit the heavy wall tool slide. Right hand 10 x 37.5 as per ASME B 16.5 For most material up to 60mm, Fit the heavy wall tool slide. |
 |
| Beveling tool Material: AISI M42 Width: 25mm Thk: 25mm Length: 200mm |
TBT-CB2525-10 TBT-CB2525-30 TBT-CB2525-37.5 |

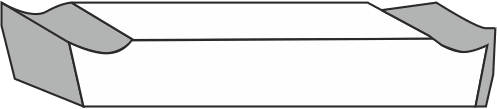

Longer Beveling tool, both ends have blade, For most materials up to 60mm, Fit the heavy wall tool slide. |  |
| Counter Boring Tools | |||
| Counter Boring Tool Material: AISI M42 |
TCBT | For pipe counter boring used on counter boring tool slide. |  |
| Description | |||
|---|---|---|---|
| Description | Part Number | Application | Sketch |
| Cutting tool Material: AISI M42 Width: 25mm Thk: 5mm |
TCT-5100 | Standard Cutting, for most materials up to 30mm. |  |
| Cutting tool Material: AISI M42 Width: 5mm Thk: 5mm Length: 200mm |
TCT-5200 | Longer cutting tool, both ends have blade, for most materials up to 60mm, cutting job only with 2c-6200. |  |
| Cutting tool Material: AISI M42 Width: 25mm Thk: 6mm Length: 200mm |
TCT-6200 | Longer cutting tool, both ends have blade, for most materials up to 60mm, cutting job only with 2c-8200. |  |
| Cutting tool Material: AISI M42 Width: 25mm Thk: 8mm Length: 200mm |
TCT-8200 | Longer cutting tool, both ends have blade, for most materials up to 60mm, cutting job only with 2c-6200. |  |
SPIDER CLAMP 3000 SERIES
- Designed for easiest and accurate alignment of short pipes/pipe to flanges/nozzles.
- Easily locating areas for welding
- Self centering & available for stainless steel.
| Part No. | Range (mm) | Weight (Kgs) |
|---|---|---|
| 3000-1 | 54-140 | 1.25 |
| 3000-2 | 85-220 | 3.6 |

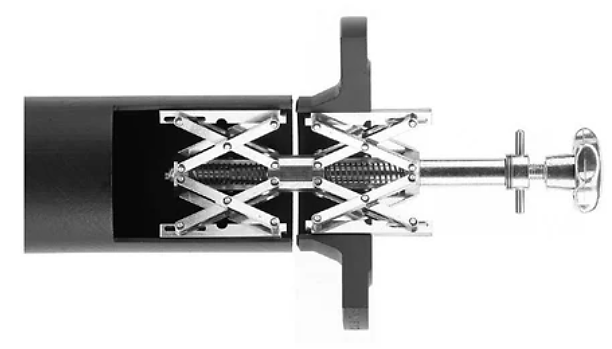

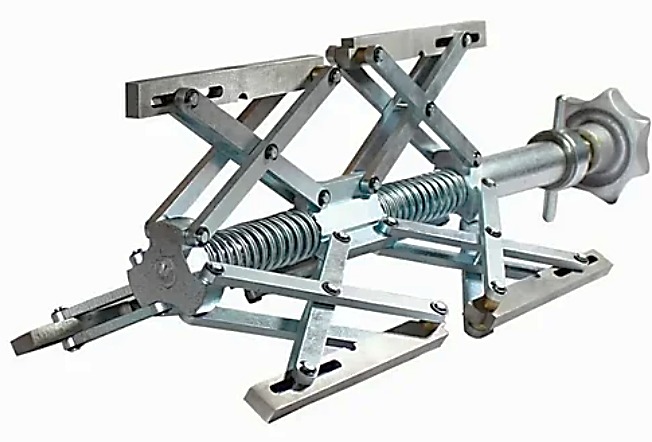

SPIDER CLAMP 4000 SERIES
- Consist of two separate clamps flxed on self centering shaft.
- Allow independent expansion of clamps operated by Knob and result perfect alignment for pipe to pipe/ pipe to Flange.
- Also available for Stainless Steel applications.
| Part No. | Range (mm) | Weight (Kgs) |
|---|---|---|
| 4000-1 | 54-140 | 1.25 |
| 4000-2 | 85-220 | 3.6 |
| 4000-3 | 120-350 | 10.5 |
| 4000-4 | 180-520 | 27 |
| 4000-5 | 400-900 | 39 |

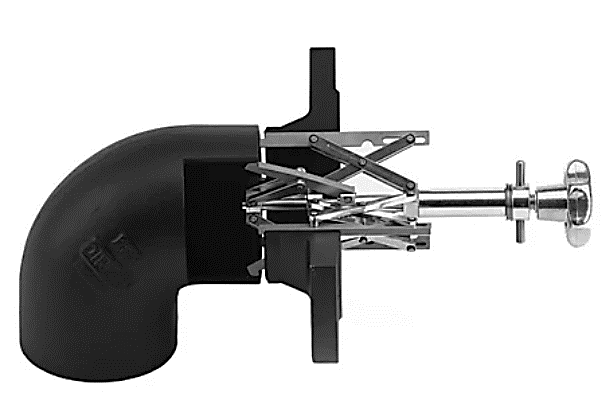

ELBOW SPIDER CLAMP 5000 SERIES
- Two independent clamps is used for clamping flanges to elbows.
- The lower expanding clamp has strong gripping feet which insert into the bend and are tightened by means of the knob.
- Also available for Stainless Steel applications
| Part No. | Range (mm) | Weight (Kgs) |
|---|---|---|
| 5000-1 | 54-155 | 1 |
| 5000-2 | 85-195 | 3.3 |
| 5000-3 | 120-315 | 9.5 |
| 5000-4 | 180-520 | 23 |

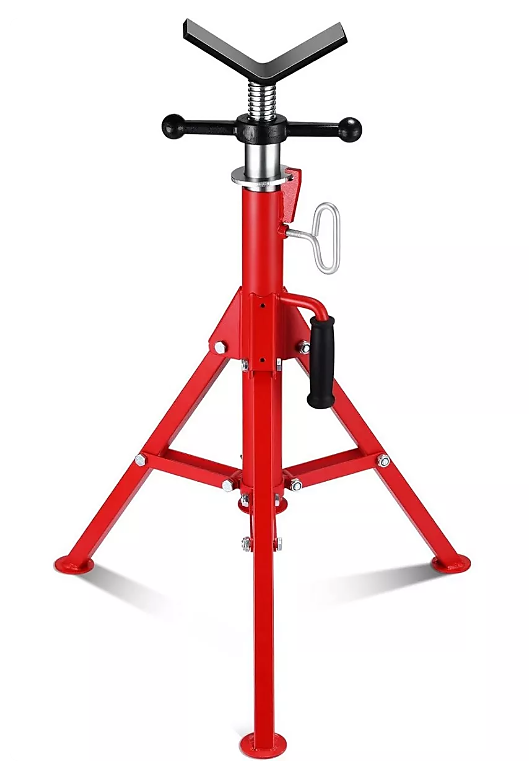

FIXED & FOLDING STANDS
- Up to 1500kg load capacity
- Adjustable height upto 48"
- Option to choose from fix & folding base
- Standard V head cover to 12" & larger V head covers 24"
- Weight 8 kgs

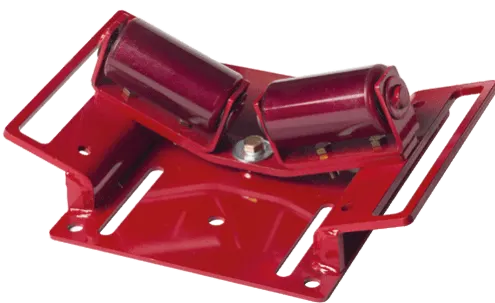

HEAVY DUTY BEAM ROLLER
- Options available from 1 – 10 tons
- Covering range upto 60" pipe diameter
- Easy installation on I beam
- Can be used on stainless steel

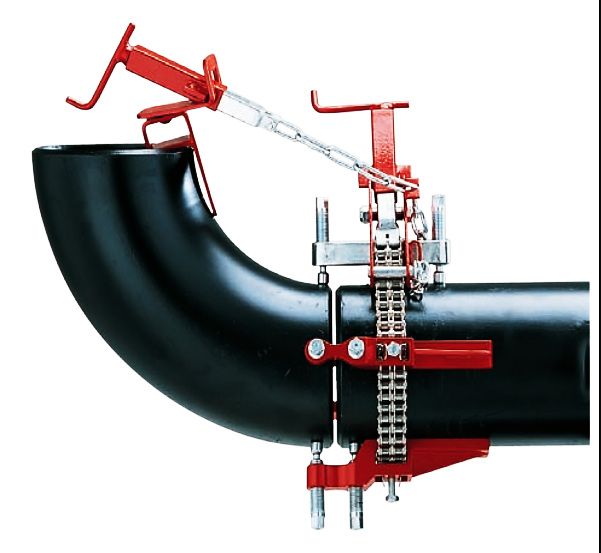

SSCC SERIES SINGLE CHAIN CLAMPS
- Options available to choose from Steel and CS
- Easy adjustment
- Different models covering range upto 72 inches
- Double chain clamps also available for heavy walls thickness
- Larger sizes also available on request

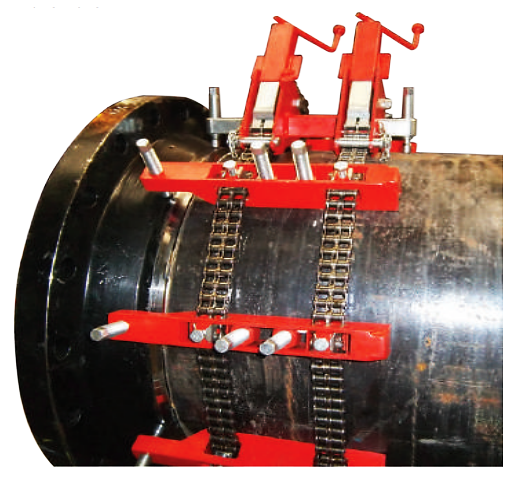

SDCC SERIES DOUBLE CHAIN CLAMPS
- Bhartiya heavy duty double chain reforming alignment clamp
- Covers ranges from 10" upto 72" also available in steel
- Reforms pipes on both sides of the weld joint to schedule 80 and above wall thicknesses
- Heavy duty Jackbars are listed for the pipe range

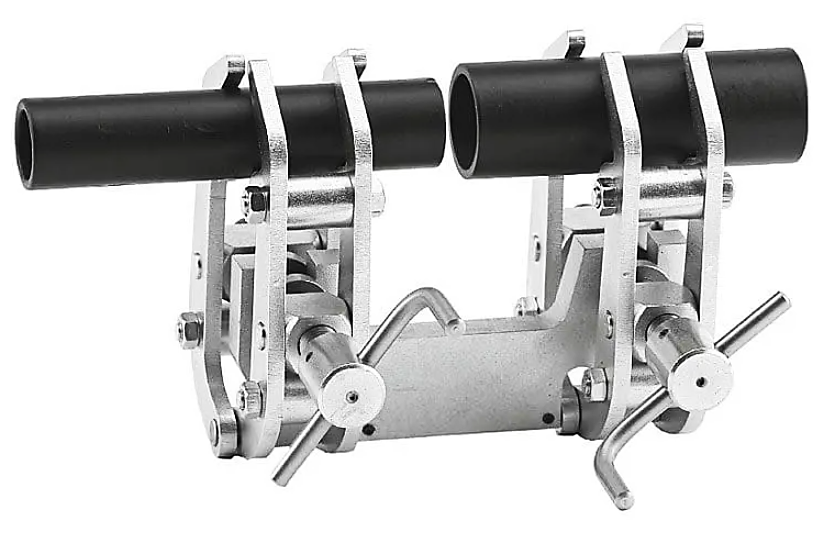

SCISSOR CLAMPS 1000 SERIES
- Accurate pipe alignment of equal/unequal on a center line
- Easy operational hassle free & easily accessible for welding
| Part No. | Range (mm) | Weight (Kgs) |
|---|---|---|
| 1000-1 | 10-77 | 2.1 |
| 1000-2 | 40-140 | 5.9 |
| 1000-3 | 75-330 | 26 |
