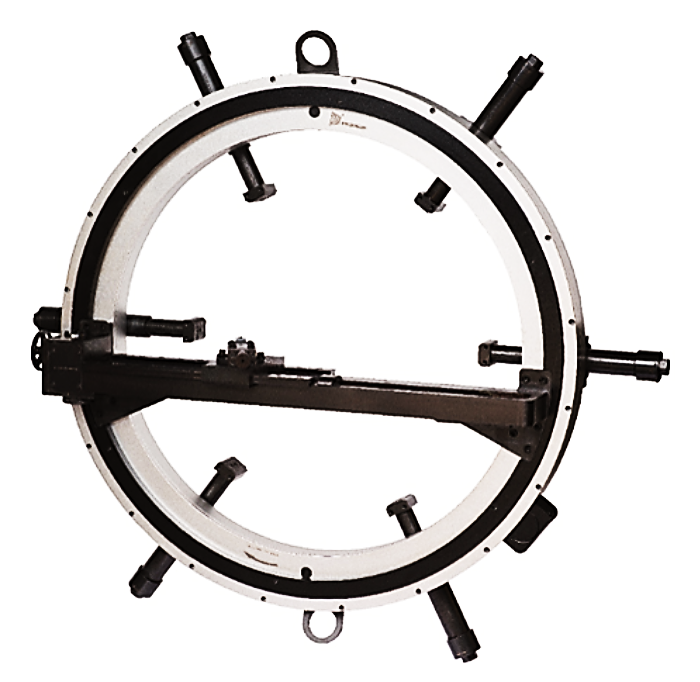

OD - MOUNTED FLANGE FACING MACHINE
No Image

FEATURES

  • Driven motor:
    • Pneumatic
    • Electric Driven
    • Hydraulic Driven
  • Light weight, easy to carry, fast installation and easy to achieve high quality finish.
  • The feed of cut is automatic from outward to inward.
  • Stock finish, Smooth finish, Gramophone finish on flanges, valve seats, and gaskets
  • Standard stock finishes carried out with step: 0.2 - 0.4 - 0.6 - 0.8 mm.
  • OD Mounted flange facing machine is designed for:
    • Flange face
    • Seal groove
    • Serrated finish
    • Weld prep
    • Counter boring
  • With the latest line and ball screw technology, this machine is widely used in the flange connecting of Petroleum, chemical, natural gas and nuclear power
  • Ensures high security and efficiency with:
    • Working range: 0-3000 mm
    • Clamping range: 150-3000 mm
  • Boring and milling tools are optional.
Model Clamping range
mm		 Working range
mm		 Tool stroke
mm		 Rotating
RPM
Pneumatic Electric Hydraulic
TO300 - P TO300 - E TO300 - H Ø50-300 Ø50-300 ≤35 ≤28
TO500 - P TO500 - E TO500 - H Ø150-500 Ø100-500 ≤110 ≤14
TO1000 - P TO1000 - E TO1000 - H Ø500-1000 Ø200-1000 ≤110 ≤10
TO1500 - P TO1500 - E TO1500 - H Ø1000-1500 Ø500-1500 ≤110 ≤8
TO2500 - P TO2500 - E TO2500 - H Ø1500-2500 Ø1000-2500 ≤110 ≤4
TO3000 - P TO3000 - E TO3000 - H Ø2500-3000 Ø1000-3000 ≤110 ≤3

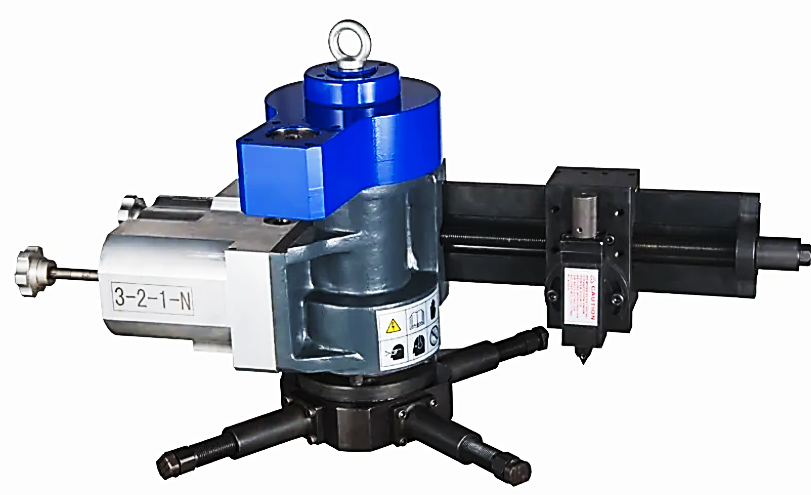

ID - MOUNTED FLANGE FACING MACHINE
No Image

FEATURES

  • Driven motor: Pneumatic, Electric Driven, Hydraulic Driven.
  • Light weight, easy to carry, fast installation, and easy to achieve high quality finish.
  • The feed of cut is automatic from outward to inward.
  • Stock finish, smooth finish, gramophone finish on flanges, valve seats, and gaskets.
  • Standard stock finishes carried out with step: 0.2 - 0.4 - 0.6 - 0.8mm
  • ID Mounted flange facing machine is designed for the flange face, seal groove and serrated finish, weld prep, and counter boring.
  • With the latest line and ball screw technology, this machine is widely used in the flange connecting of Petroleum, chemical, natural gas, and nuclear power.
  • It ensures the high security and efficiency with the Working range 0-3000mm, Clamping range 150-3000mm.
  • Boring and milling tools are optional.
Model Clamping range Working range Toolstroke Rotating
Pneumatic Electric Hydraulic mm mm mm RPM
TI610 P TI610 - E TI610 - H Ø 50 - 560 Ø 50 - 610 ≤ 40 ≤ 50
TI610 - II - P TI610 - II - E TI610 - II - H Ø 50 - 500 Ø 50 - 570 ≤ 40 ≤ 60
TI1016 - P TI1016 - E TI1016 - H Ø 50 - 914 Ø 508 - 1016 ≤ 100 ≤ 24
TI1000 - II - P TI1000 - II - E TI1000 - II - H Ø 290 - 813 Ø 300 - 1000 ≤ 100 ≤ 24
TI1420 - P TI1420 - E TI1420 - H Ø 610 - 1016 Ø 610 - 1420 ≤ 100 ≤ 20
TI1500 - P TI1500 - E TI1500 - II - H Ø 550 - 1400 Ø 560 - 1500 ≤ 100 ≤ 20
TI650 - P TI650 - E TI650 - H Ø 500 - 1500 Ø 500 - 1650 ≤ 100 ≤ 18
TI2032 - P TI2032 - E TI2032 - H Ø 1168 - 1930 Ø 1168 - 2032 ≤ 100 ≤ 15
TI3048 - P TI3048 - E TI3048 - H Ø 2210 - 2810 Ø 2210 - 3048 ≤ 100 ≤ 8
TI4521 - P TI4521 - E TI4521 - H Ø 2210 - 4521 Ø 2210 - 4521 ≤ 100 ≤ 6
DRIVE MOTOR AND TOOL BIT

POWER SUPPLIES

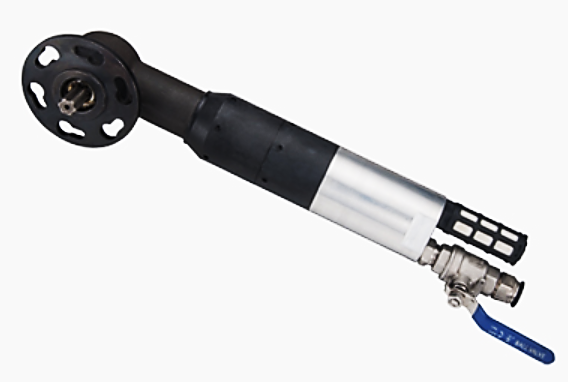

  • Pneumatic:
    • Air requirement: 1500-3500L/min @0.63-0.8Mpa
    • Power: 2HP, 3HP, 4HP
    • Double moto for big model or heavy duty
No Image

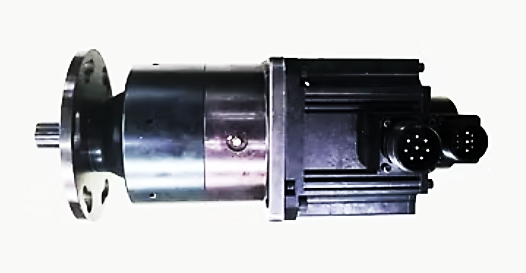

  • Electric:
    • Electric requirement: 220V 1PH 50/60Hz;380V 3PH 50/60Hz
    • Power: 2.0KW or 3.0KW
    • Double moto for big model or heavy duty
No Image

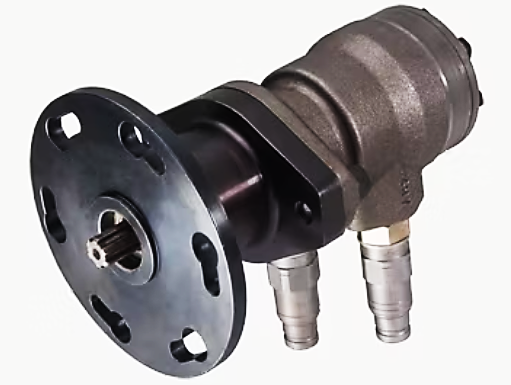

  • Hydraulic:
    • Electric requirement: 28-50Lmin@13Mpa
    • Electric requirement: 380V 3PH 50/60Hz
    • Rated flow: 28L/min
    • Max. Torque: 380NM
No Image

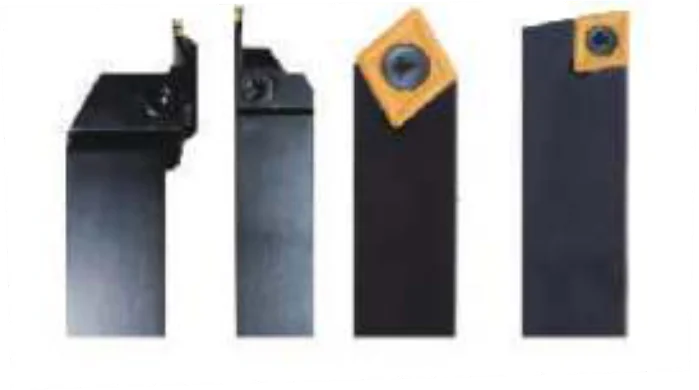

INSERTS

  • Holder : HSS
  • Material : HSS-Co or Carbide
  • Type : Grooving, Facing
No Image
