Advantages Of Water Jet Cutting Over Conventional Gas Cutting
| Hazards | Conventional System - Gas Cutting | Ultra High Pressure Water Jet Cutting |
|---|---|---|
| Explosive or by gas leak | LPG and other fuel gases are explosive mixture with air and tanks due to hot work. Cause in gas pipeline and oxygen. Fire/explosion can highly flammable and form. | Water and fine abrasive materials used for Cold Cutting which helps to keep the cutting temperature under the LEL. |
| Black fire & flashback | This is a common problem in case of conventional gas cutting. | The issue is totally eliminated. |
| Health Hazards | Fumes created during gas cutting, particles generated during the gas cutting create health hazards like lung cancer. | No emission of fumes. |
| Fire/Burns misuse of oxygen | Oxygen leakage create fire hazards and O2 is costly. | Oxygen is not used; water is cheap. |
| Crushing & impact injury | Prevent cylinders from falling or being knocked over by securing them with a stout chain or strap. | No usage of heavy cylinders; cutting setup is fixed on the cut piece itself. |
| Man-machine interference | People work closely with cutting machine and cutting objects. | Remote operated-cold work. |
| Material | Thickness (mm) | Cutting speed (300) MPa system mm/min | Cutting speed (380) MPa system mm/min | Cutting speed (420) MPa system mm/min |
|---|---|---|---|---|
| Normal Glass | 5 10 19 |
1100-1200 480-600 290-350 |
1400-1500 690-800 400-500 |
2100-2250 1035-1200 600-750 |
| Granite Panel | 20 30 |
200-250 120-150 |
260-300 170-200 |
390-450 255-300 |
| Porcelain Tile | 10 | 610-700 | 900-1000 | 1350-1500 |
| Marble Panel | 10 20 30 |
500-700 260-300 170-200 |
600-900 350-400 260-300 |
900-1350 525-600 390-450 |
| Laminating Glass | 21 | 310-400 | 490-600 | 735-900 |
| Sponge & Foam | 20 50 80 |
4000-5000 1500-2000 1300-1500 |
6000-7000 2600-3000 1600-2000 |
9000-10500 3900-4500 2400-3000 |
| Steel Plate | 10 20 30 |
150-180 55-80 13-20 |
170-220 75-100 15-30 |
255-330 113-150 22-45 |
| Stainless Steel Plate | 1 3 6 10 16 20 30 |
700-900 300-400 180-220 80-100 70-85 50-60 20-25 |
1000-1200 500-600 240-300 150-180 85-100 70-80 30-40 |
1500-1800 750-900 360-450 225-270 128-170 105-120 45-60 |
| Copper Plate | 3 5 20 30 |
850-1000 360-500 80-100 50-60 |
1350-1500 700-850 160-200 100-120 |
2025-2250 1050-1275 240-300 150-180 |
| Titanium Alloy | 13 | 50-60 | 100-115 | 150-173 |
| Material | Thickness | Cutting speed 320 MPa system (mm/min) | Cutting speed per shift (10/hrs) Per Machine in minute |
|---|---|---|---|
| Steel Plate |
Below 10 mm Below 20 mm Below 30 mm Below 40 mm |
100-120 mm 40-60 mm 10-15 mm 8-12 mm |
40-50 Meter 20-30 Meter 5-7 Meter 3-5 Meter |

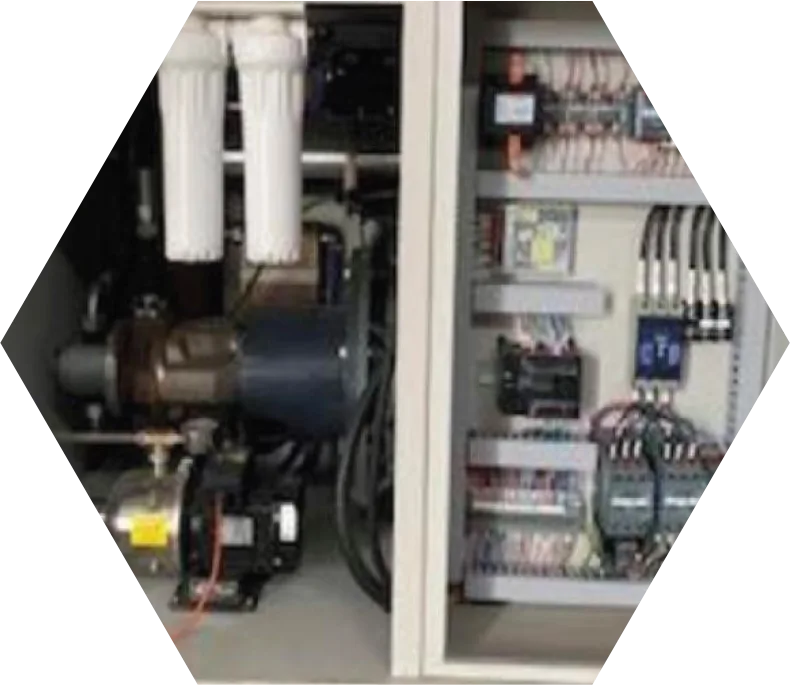

| Parameter | Specification |
|---|---|
| Model No | TWC37 |
| Max Pressure | 420 Mpa. |
| Max Oil Discharge | 406 L/min |
| Max Water Discharge | 3.8 L/min |
| Max Diameter of Orifice | 0.33 mm |
| Continuous Operating Pressure | 380 Mpa. |
| Max Operating Pressure | 320-380 Mpa. |
| Power Requirement | 37 Kw / 380V 50 Hz |
| Types of Shift is | Electronic |
| Oil Pump Operation | Automatic |
| Variable Pump | Yes |
| Accumulator | 1.2 L |
| Hydraulic Oil Tank Capacity | 100 Liters |
| Stroke Speed | 79 times/min |
| Water Required Type | Clean Drinking Water |
Other Advantages
- No secondary finishing is required.
- No heat-affected zone or thermal distortion.
- Low cutting forces on workplace.
- Minimal material wastage with smaller kerf size.
- Limited tooling requirements.
- No cutter-induced distortion of metal contamination.
- Precise multi-angle cutting with no slag or cutting dross.
Use Cases

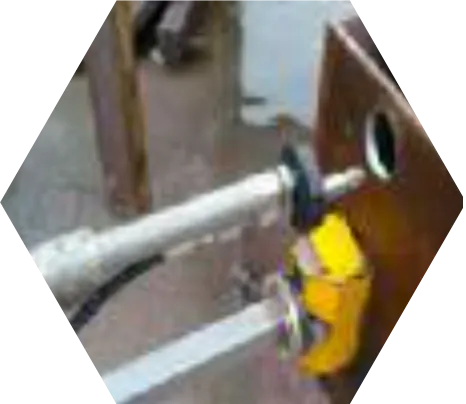

- Steel Pipeline Modification.
- Rolling Mill Maintenance.

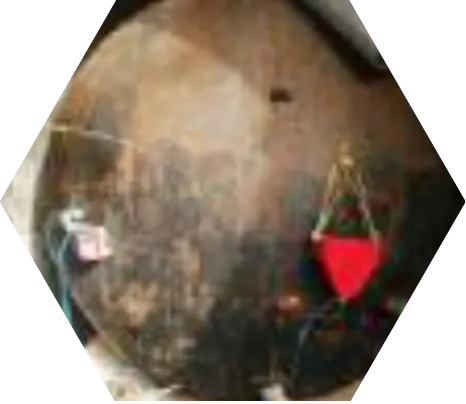

- Vessel and Tank Repairs.
- Steel Structure Demolition.
- Steel Plate Profiling and sedimented material cleaning.
- Maintenance of Ladles and Furnaces.
- Steel Casting Modification.
- Steel Bar and Rod Cutting.
