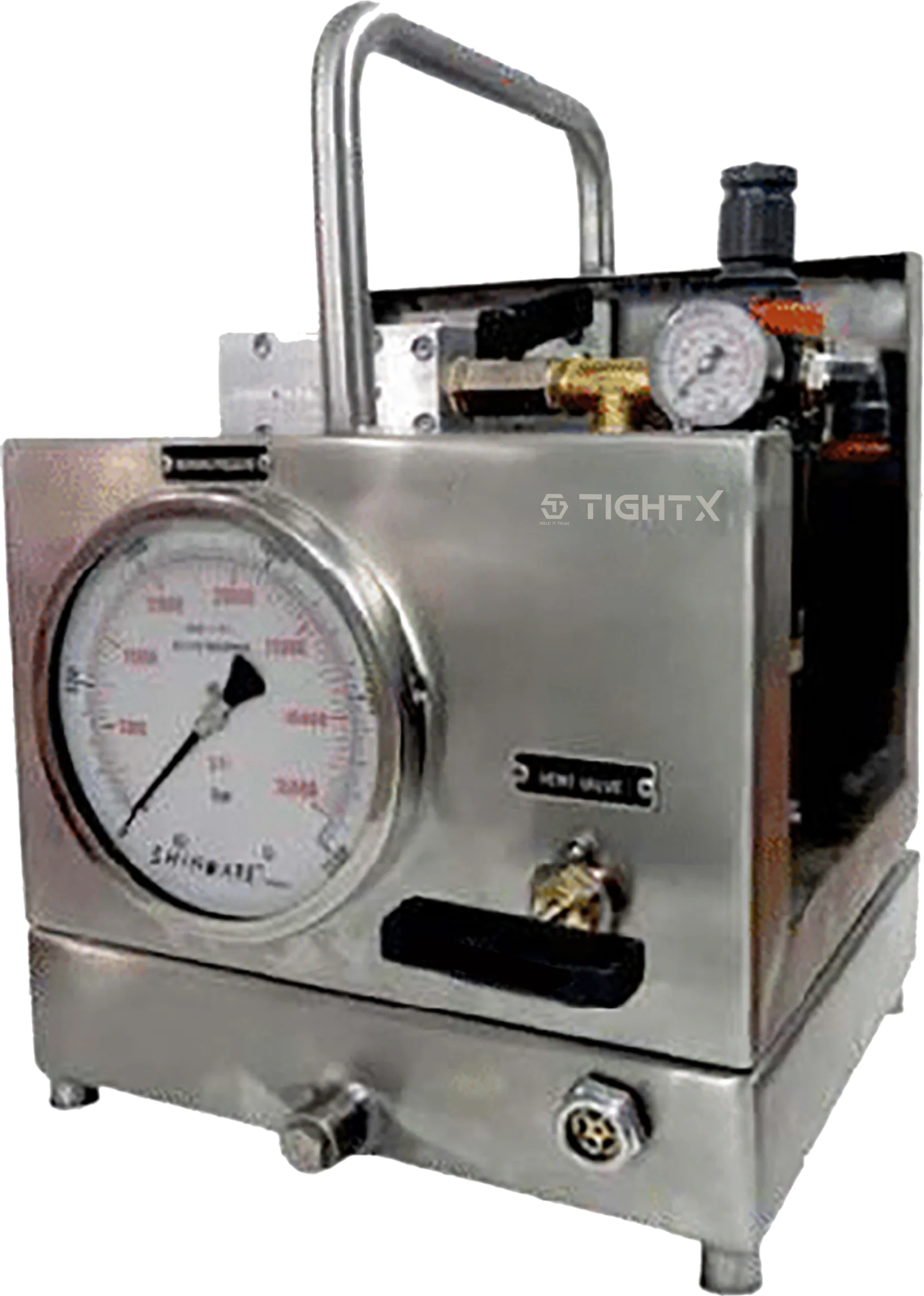

FEATURES
- Variable output pressure and fluid displacement speed.
- Integral inlet air filtration and lubrication unit with air pr. gauge.
- Air line regulator for easy setting of input air and output hydraulic pressure.
- Maximum air consumption of 0.79 m³ (28 scfm) per min. at 7 bars.
- Smooth and easily operated Automatic hydraulic pressure hold and release valve.
- Fitted with input air pump start/stop valve for easy and fast pressure shut off.
- Robust stainless-steel protective framework, Wide range of models with different ratios.
- Lightweight plastic, 7.5 lights capacity, fluid reservoir.
- Optional stainless-steel reservoir, stroke counter system & pr. isolation valve available on request.
- No Airline Lubricator required. Heat, Flame, spark and Explosion proof.
| Model No. | Pressure Ratio | Inlet Air Pressure | MAX Outlet Pressure(bar)* | Air Inlet Port | Outlet Port | Max Flow (L/min)** |
|---|---|---|---|---|---|---|
| THP/32 | 4:1 | 3-8 bar | 32 | G 1/2 | NPT | 70.0 |
| THP/48 | 6:1 | 3-8 bar | 48 | G 1/2 | NPT | 29.91 |
| THP/80 | 10:1 | 3-8 bar | 80 | G 1/2 | NPT | 18.84 |
| THP/128 | 16:1 | 3-8 bar | 128 | G 1/2 | NPT | 12.42 |
| THP/224 | 28:1 | 3-8 bar | 224 | G 1/2 | NPT | 7.11 |
| THP/320 | 40:1 | 3-8 bar | 320 | G 1/2 | NPT | 4.89 |
| THP/512 | 64:1 | 3-8 bar | 512 | G 1/2 | NPT | 3.08 |
| THP/640 | 80:1 | 3-8 bar | 640 | G 1/2 | NPT | 2.44 |
| THP/800 | 100:1 | 3-8 bar | 800 | G 1/2 | NPT | 1.92 |
| THP/1040 | 130:1 | 3-8 bar | 1040 | G 1/2 | NPT | 1.47 |
| THP/1400 | 175:1 | 3-8 bar | 1400 | G 1/2 | NPT | 1.14 |
| THP/2040 | 255:1 | 3-8 bar | 2040 | G 1/2 | NPT | 0.75 |
| THP/3200 | 400:1 | 3-8 bar | 3200 | G 1/2 | NPT | 0.48 |
| THP/4080 | 510:1 | 3-8 bar | 4080 | G 1/2 | NPT | 0.65 |
| THP/6400 | 800:1 | 3-8 bar | 6400 | G 1/2 | NPT | 0.42 |
