Air Freight Calculator
tightx-solutions

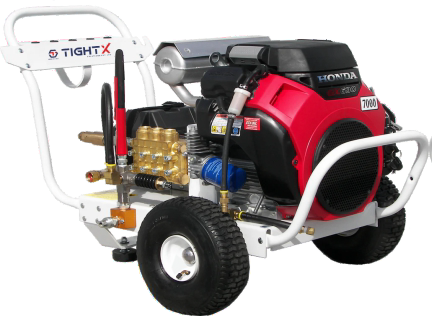

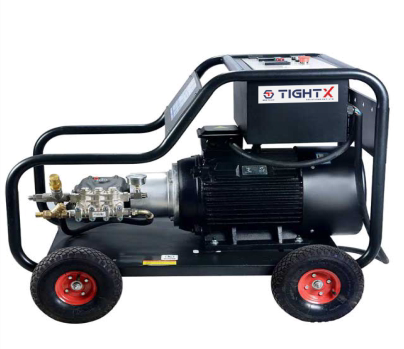

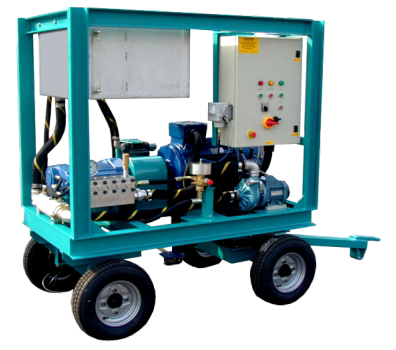

High Pressure Water Jet Cleaning Machine
No Image
No Image
No Image

320 To 1400 BAR

High Pressure water jetting machines are used for Heat Exchanger, (like textile, pharmaceutical, Steel, Chemical, Refineries) Condenser, Evaporator, Calendria, Boiler etc. in various industries.

Model No. MAXIMUM PRESSURE (BAR/PSI) WATER FLOW RATE (LPM) MOTOR POWER (HP) POWER
THP - 320E 320 21 15 3 Phase
THP - 400E 400 21 20 3 Phase
THP - 500E 500 21 25 3 Phase
THP - 800E 800 16/26 30/50 3 Phase
THP - 1000E 1000 34 75 3 Phase
THP - 1200E 1200 34 100 3 Phase

ACCESSORIES

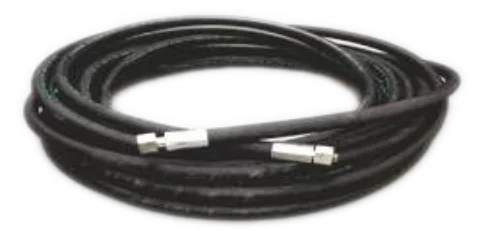

High Pressure Hose

No Image

Specially designed to withstand high pressures, with swivel coupling both ends

Nozzle
(Straight, Forward, Backward Firing, Zero & V Jet)
No Image

Highly effective and time saving than conventional. For surface cleaning, cutting tube / drain cleaning and general applications.

Flexible Lance

No Image

Specially designed to withstand high pressures.

Rigid Lance

No Image

Made up of SS material, for easy & firm grip to counter the back pressure at the time of in & out of nozzle.

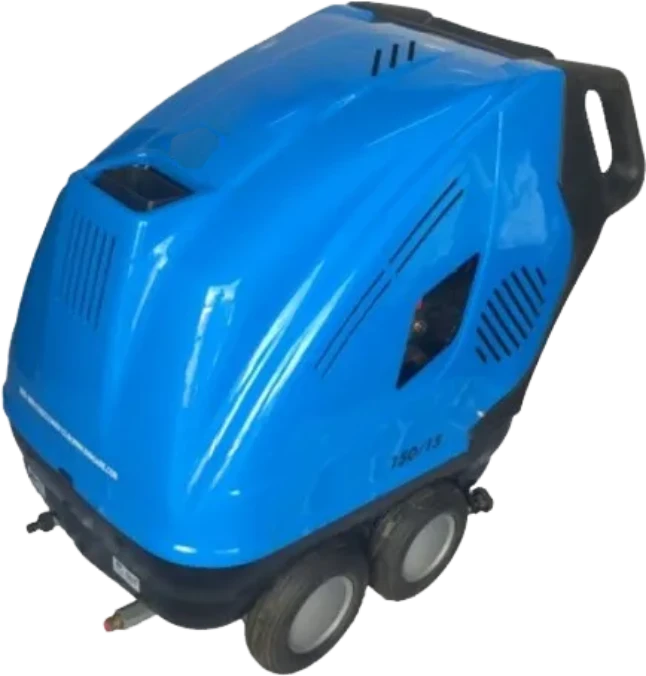

Hot & Cold Water Jet Cleaning Machine
No Image
MODEL NO TES - 12010 TES - 15015 TES - 20015
Pressure 120 BAR 150 BAR 200 BA
Flow Rate 10 LPM 15 LPM 15 LPM
Max Water Temp. 0-130° C 0-130°C 0-130° C
Motor Revolution 1450 RPM 1450 RPM 1450 RPM
Power Supply 230V - 50Hz 400V - 50Hz 400V - 50Hz
Motor Power 3 HP 5,5 HP 7,5 HP
Dimensions mm 880x590x730 880x590x730 880x590x730
Diesel Tank Capacity 14 IT 14 IT 14 IT
Weight 114 Kg 118 Kg 125 Kg

ACCESSORIES

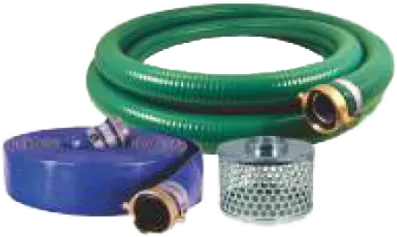

Suction Hose

Are available for all discharge capacities in standard lengths. They are either nylon type or wire braided type.

No Image

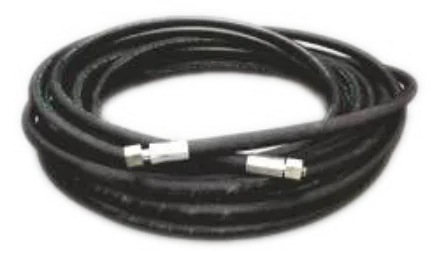

Delivery Hose

Available in standard lengths with hydraulic high pressure BSP Connections for working pressure from 2,000 PSI to 20,0000PSI

No Image

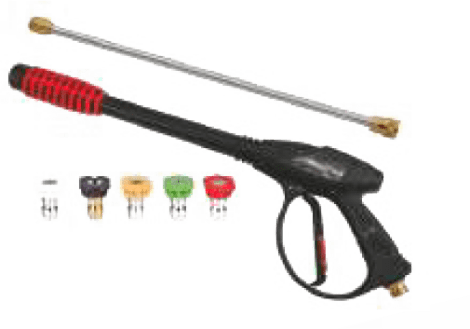

ON/OFF Gun Rigid Lance and Nozzles

These are the portable guns used for light duty small high pressure portable cleaners, manually controlled by use of trigger.

No Image

FEATURES

  • Stainless Steel Boiler
  • Triplex pump with ceramic plungers, connecting rod system
  • Brass pump head
  • Automatic by-pass valve
  • Pressure gauge
  • Built-in detergent suction
  • Boiler shut-down delayed circuit
  • With safety pressure switch to shutdown the boiler in case of lack of water
  • Induction type 3 PH motor with thermal protector
  • Thermostat
  • Detergent tank 4/5L
  • Vertical stainless steel boiler cooling function driven by independent electric motor, double heating coil with refractory cement base
  • 5 mtr Electric cable
  • Diesel tank 15L, with discharge plug
  • Water and diesel filters
  • TSS, remote control for shutdown of high pressure cleaner
  • Adjust high/low pressure and fan/pencil jet spray head
  • Accessories Holder
