Hydraulic Jacks

TIGHTX offers an extensive range of Hydraulic Jacks that suits most of Industrial Application
It covers alloy steel jacks from 5 Ton to 1000 Tons of varuous stroke.
There are Flat Jacks, Super Flat, Compact and General purpose cylinders.
Range of Jacks suit most of applications that is which requires below objective Precision Lifting, Aligning, Pushing, Pulling and Load holding

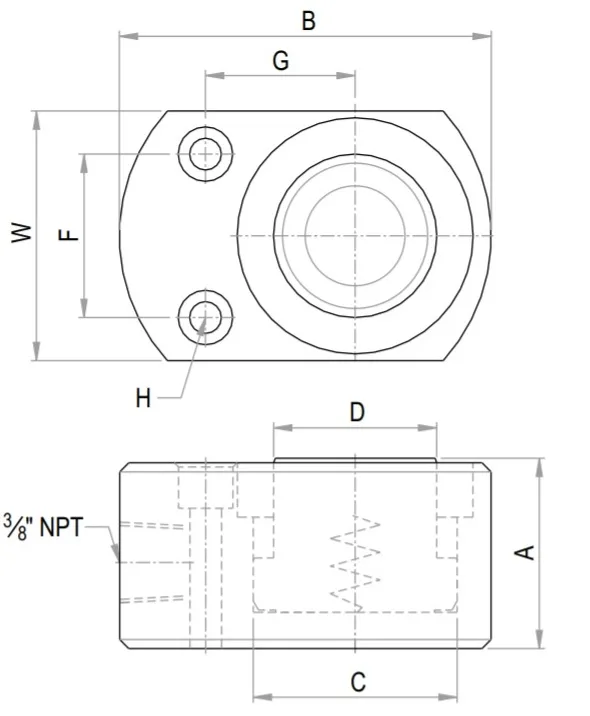

Hydraulic Jack Flat
Model Tonnage Stroke Closed Height OD Weight
Ton mm mm mm Kg
THJF-5-8 5 8 35 60 0.6
THJF-10-12 10 12 45 80 1.3
THJF-20-12 20 12 55 100 3
THJF-30-12 30 12 60 115 4
THJF-50-16 50 16 65 140 6
THJF-75-16 75 16 80 175 12
THJF-100-16 100 16 85 190 15
THJF-150-16 150 16 100 230 27
THJF-200-16 200 16 115 265 41

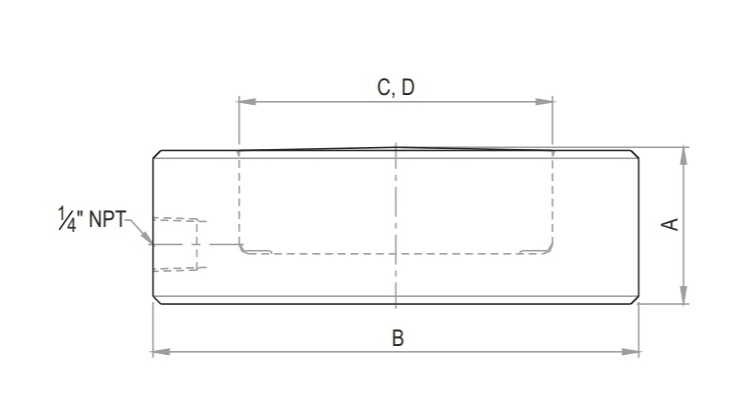

Hydraulic Jack Super Flat
Model Tonnage Stroke Closed Height OD Weight
Ton mm mm mm Kg
THJSF-10-10 10 10 30 80 1.2
THJSF-20-10 20 10 35 100 2.2
THJSF-30-10 30 10 40 110 3
THJSF-50-10 50 10 50 140 6
THJSF-100-10 100 10 70 180 14
THJSF-150-10 150 10 75 220 22
THJSF-200-10 200 10 80 255 34
THJSF-300-10 300 10 90 310 55

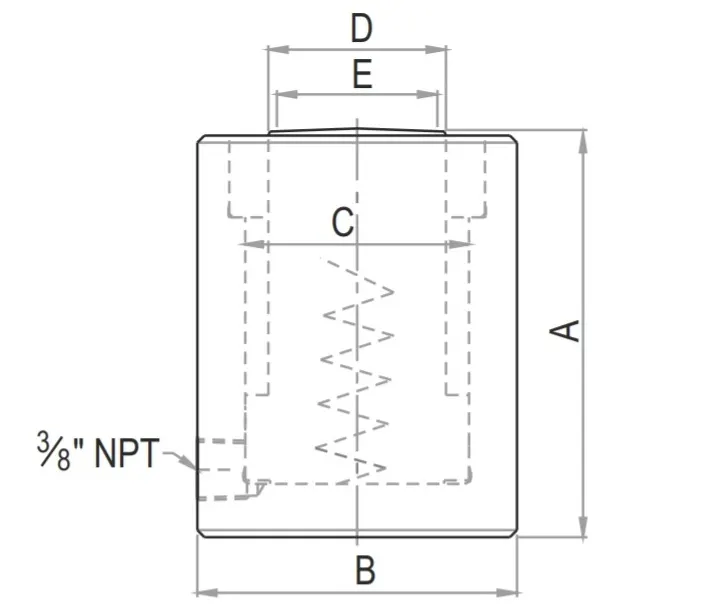

Hydraulic Jack Compact
Model Tonnage Stroke Closed Height OD Weight
Ton mm mm mm Kg
THJC-10-30 10 30 90 70 2.3
THJC-20-50 20 50 115 90 5
THJC-30-50 30 50 120 100 6
THJC-50-60 50 60 125 130 11
THJC-75-60 75 60 145 155 19
THJC-100-60 100 60 150 180 24
THJC-150-60 150 60 165 220 43
THJC-200-60 200 60 200 255 66

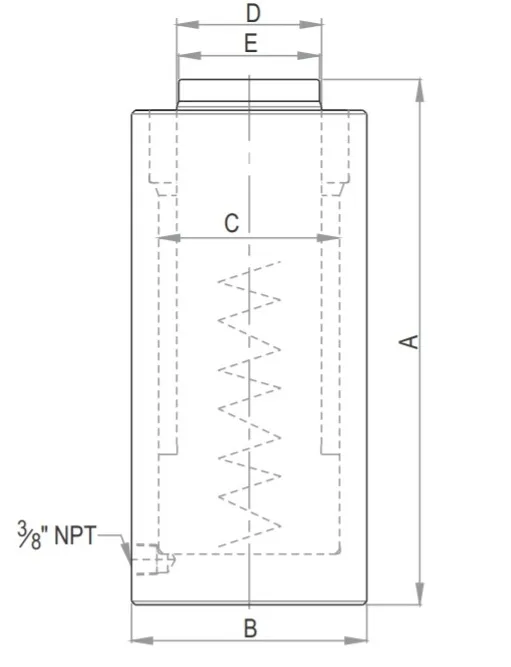

Hydraulic Jack General Purpose
Model Tonnage Stroke Closed Height OD Weight
Ton mm A mm B mm Kg
THJG-5-50 5 50 135 45 1.5
THJG-5-100 5 100 185 45 2
THJG-5-150 5 150 235 45 2.5
THJG-10-50 10 50 135 60 2.5
THJG-10-100 10 100 185 60 3.2
THJG-10-150 10 150 235 60 4
THJG-10-200 10 200 285 60 5
THJG-15-50 15 50 140 70 4
THJG-15-100 15 100 190 70 5.2
THJG-15-150 15 150 240 70 6.3
THJG-15-200 15 200 290 70 7.4
THJG-20-50 20 50 145 80 5.3
THJG-20-100 20 100 195 80 7
THJG-20-150 20 150 245 80 8
THJG-20-200 20 200 295 80 10
THJG-25-50 25 50 155 90 7.2
THJG-25-100 25 100 205 90 9
THJG-25-150 25 150 255 90 11
THJG-25-200 25 200 305 90 13
THJG-30-50 30 50 160 100 9
THJG-30-100 30 100 210 100 12
THJG-30-150 30 150 260 100 14
THJG-30-200 30 200 310 100 16
THJG-50-50 50 50 175 130 17
THJG-50-100 50 100 225 130 21
THJG-50-150 50 150 275 130 25
THJG-50-200 50 200 325 130 30
THJG-75-50 75 50 180 155 24
THJG-75-100 75 100 230 155 30
THJG-75-150 75 150 280 155 35
THJG-75-200 75 200 330 155 41
THJG-100-50 100 50 185 180 33
THJG-100-100 100 100 235 180 41
THJG-100-150 100 150 285 180 48
THJG-100-200 100 200 335 180 56
THJG-150-50 150 50 200 220 54
THJG-150-100 150 100 250 220 66
THJG-150-150 150 150 300 220 77
THJG-200-50 200 50 215 255 76
THJG-200-100 200 100 265 255 91
THJG-200-150 200 150 315 255 107
THJG-250-100 250 100 270 280 114
THJG-250-150 250 150 320 280 133
THJG-250-200 250 200 370 280 202
THJG-300-100 300 100 285 310 149
THJG-300-150 300 150 335 310 173
THJG-300-200 300 200 385 310 197
THJG-400-100 400 100 315 350 209
THJG-400-150 400 150 365 350 239
THJG-400-200 400 200 415 350 269

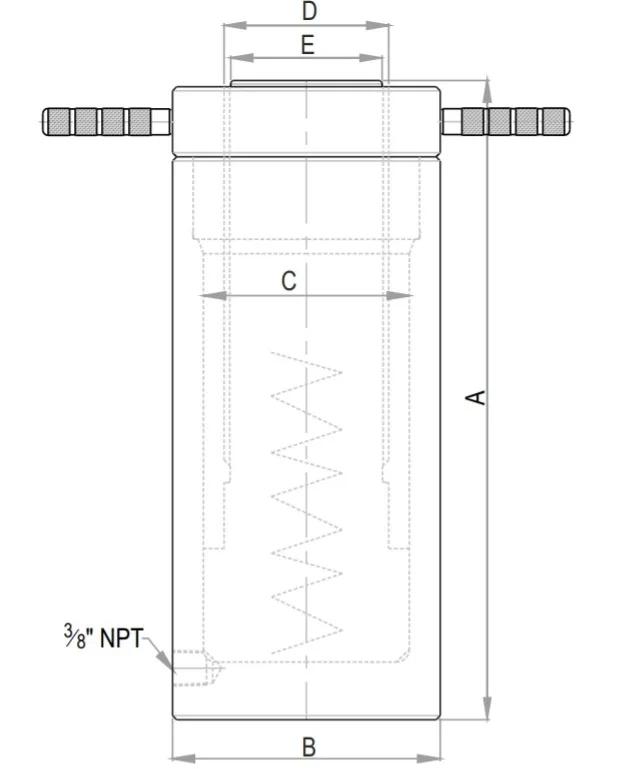

Hydraulic Jack General Purpose Threaded
Model Tonnage Stroke Closed Height OD Weight
Ton mm A mm B mm Kg
THJGT-10-150 10 150 245 60 5
THJGT-15-150 15 150 250 70 7
THJGT-20-150 20 150 260 80 9
THJGT-25-150 25 150 270 90 12
THJGT-30-150 30 150 275 100 15
THJGT-50-150 50 150 290 130 27
THJGT-75-150 75 150 295 155 39
THJGT-100-150 100 150 305 180 54
THJGT-150-150 150 150 325 220 88
THJGT-200-150 200 150 340 255 122
THJGT-250-150 250 150 350 280 154
THJGT-300-150 300 150 370 310 202
THJGT-400-150 400 150 405 350 283

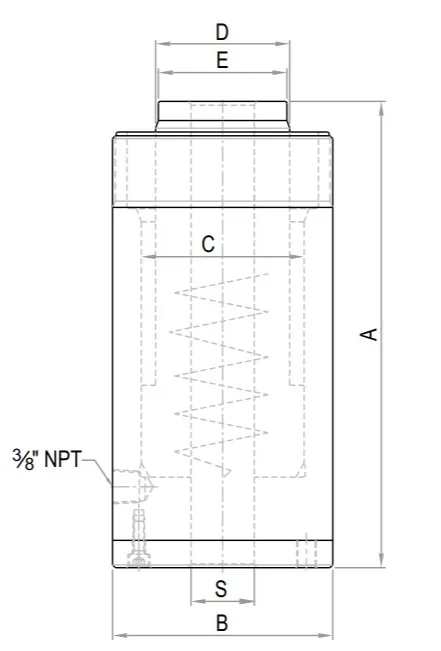

Hydraulic Jack Hollow
Model Tonnage Stroke Closed Height OD Weight
Ton mm A mm B mm Kg
THJH-10-50 10 50 165 75 5
THJH-10-75 10 75 190 75 5
THJH-10-100 10 100 215 75 6
THJH-20-50 20 50 170 105 11
THJH-20-100 20 100 220 105 14
THJH-20-150 20 150 270 105 16
THJH-30-50 30 50 195 115 13
THJH-30-75 30 75 220 115 15
THJH-30-100 30 100 245 115 16
THJH-30-150 30 150 295 115 19
THJH-50-75 50 75 230 150 25
THJH-50-100 50 100 255 150 27
THJH-60-75 60 75 245 165 32
THJH-60-100 60 100 270 165 35
THJH-60-150 60 150 320 165 41
THJH-100-75 100 75 270 215 58
THJH-100-100 100 100 295 215 62
