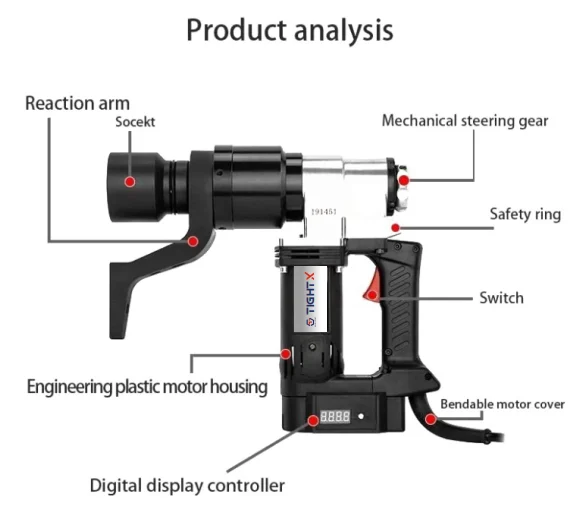

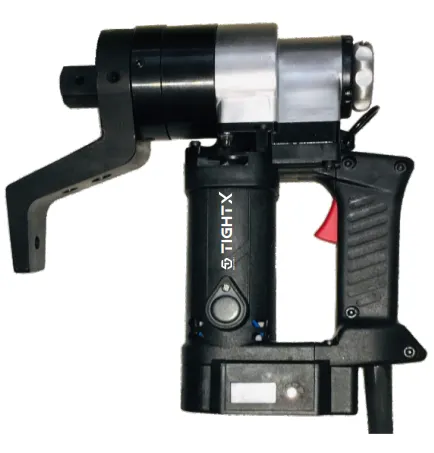

FEATURES
- Easy switch directions. Applying reaction arm to the closest object, tighten up to target torque.
- Perfect solution for your work in narrow spaces.
- Ultra compact socket with an integrated reaction arm.
- Easily set your target torque with the dial on the Controller.
- Versatile performance of our electric torque wrench for bridge construction, steel fabrication, and any kind of heavy industry.
- Available with both forward and reverse directions.
- Shortest profile and compact socket make it accessible to bolts in any narrow space.

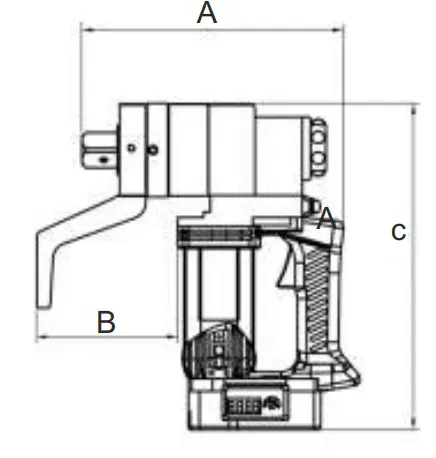

| Model No. | Torque (Nm) | Square Drive | Weight (kg) | Speed (Rpm) |
|---|---|---|---|---|
| TEWS-3 | 100-300 | 3/4" | 4 | 24 |
| TEWS-5 | 200-500 | 3/4" | 4.2 | 15.5 |
| TEWS-7 | 300-700 | 1" | 4.6 | 15 |
| TEWS-9 | 400-900 | 1" | 5.1 | 9.5 |
| TEWS-12 | 500-1200 | 1" | 6.3 | 9 |
| TEWS-18 | 500-1800 | 1" | 5 | 5.5 |
| TEWS-21 | 1000-2100 | 1 1/2" | 7.2 | 6 |
| TEWS-25 | 1100-2500 | 1 1/2" | 9 | 5 |
| TEWS-35 | 1700-3500 | 1 1/2" | 15 | 2.5 |
| TEWS-60 | 3000-6000 | 1 1/2" | 18 | 0.6 |
| TEWS-100 | 5000-10000 | 2 1/2" | 21 | 0.3 |

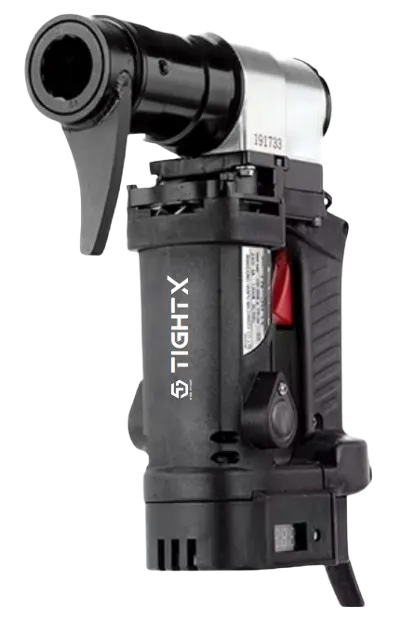

FEATURES
- Available with both direction forward and reverse.
- Shortest profile and compact socket make accessible to bolts at any narrow space.
- Easy switch directions. Applying reaction arm to the closest object, tighten up to target torque.
- Perfect solution for your work in narrow spaces.
- Easily set your target torque with the dial on the Controller.
- Versatile performance of our electric torque wrench for bridge construction, steel fabrication, and any kind of heavy industry.
- Ultra compact socket with an integrated reaction arm.

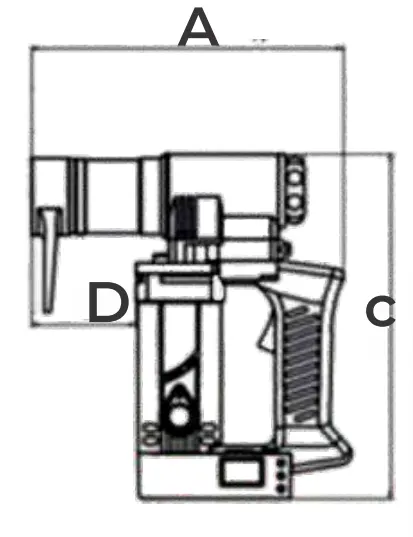

| Model No. | Torque (Nm) | Speed (Rpm) | Weight (Kg) | Direct Hex Available | Diameter D | Overwall Length A (mm) | Overwall Width C (mm) |
|---|---|---|---|---|---|---|---|
| TEWH-3 | 100-300 | 28 | 4 | M10,M12,M16 | 80 | 240 | 267 |
| TEWH-5 | 200-500 | 20 | 4.2 | M12,M16,M20 | 111 | 271 | 267 |
| TEWH-7 | 300-700 | 18 | 4.6 | M16,M20,M22 | 54 | 221 | 269 |
| TEWH-9 | 400-900 | 16 | 5.1 | M20,M22,M24 | 71 | 238 | 275 |
| TEWH-12 | 500-1200 | 14 | 6.3 | M22,M24,M27 | 50 | 225 | 287 |
| TEWH-21 | 1000-2100 | 10 | 7.2 | M27,M30,M33 | 95 | 274 | 286 |
| TEWH-25 | 1100-2500 | 5 | 9 | M30,M33,M36 | 107 | 283 | 293 |
| TEWH-35 | 1700-3500 | 4.5 | 15 | M33,M36,M42 | 107 | 283 | 293 |

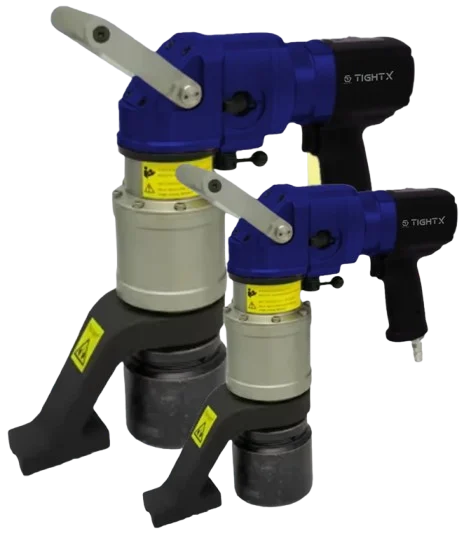

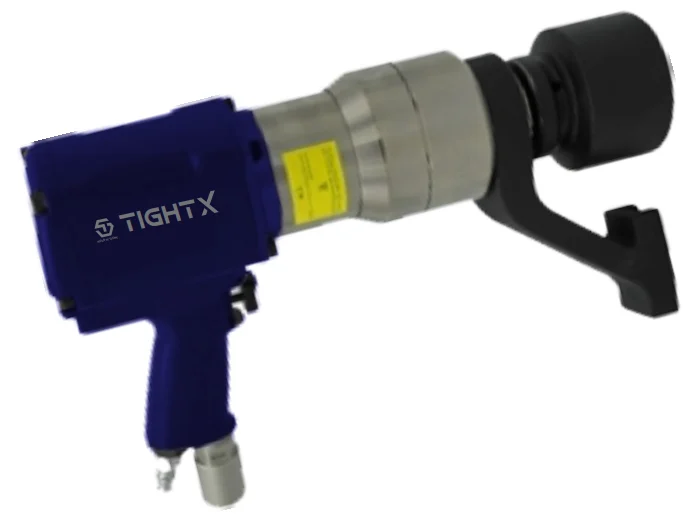

FEATURES
- Air flow requirements: TSW-06/10/15, 6bar, 600L/min
- Air flow requirements: TSW-21~TSW-100, 7bar, 800L/min
- Preset torque, output & repeat accuracy: ±5% & ±3%
- Powerful and low noise, less than 80dba
- Free connection of power handle and gear box, could be rotated 360°
- With single speed gearbox, light weight and small size, easily operated
- Suitable for continuous working with no-impact

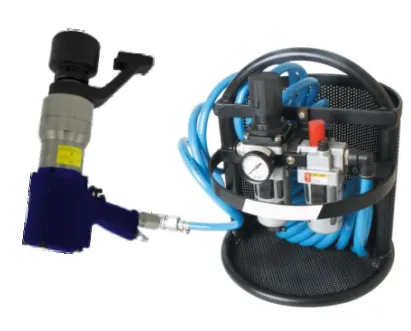

- Supply with air register, hose, quick coupling
| Model No. | Torque (Nm) | Square C | Diameter D (mm) | Length L (mm) | Width E (mm) | Free Speed (rpm) | Weight (kg) | Reaction Arm Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| TSW-06 | 75-650 | 3/4" | 76 | 300 | 186 | 23 | 4.9 | 0.9 |
| TSW-10 | 120-1060 | 1" | 76 | 300 | 186 | 13 | 5.0 | 0.9 |
| TSW-15 | 170-1500 | 1" | 76 | 300 | 186 | 10 | 5.0 | 0.9 |
| TSW-21 | 320-2100 | 1" | 88 | 310 | 255 | 14 | 7.5 | 1.2 |
| TSW-28 | 430-2800 | 1" | 88 | 310 | 255 | 10.5 | 7.5 | 1.2 |
| TSW-39 | 610-3900 | 1-1/2" | 96 | 350 | 255 | 7.5 | 9.8 | 2.1 |
| TSW-58 | 950-5800 | 1-1/2" | 114 | 400 | 255 | 5 | 12.5 | 3.4 |
| TSW-100 | 1650-10000 | 1-1/2" | 143 | 445 | 255 | 3 | 19.2 | 4.1 |
